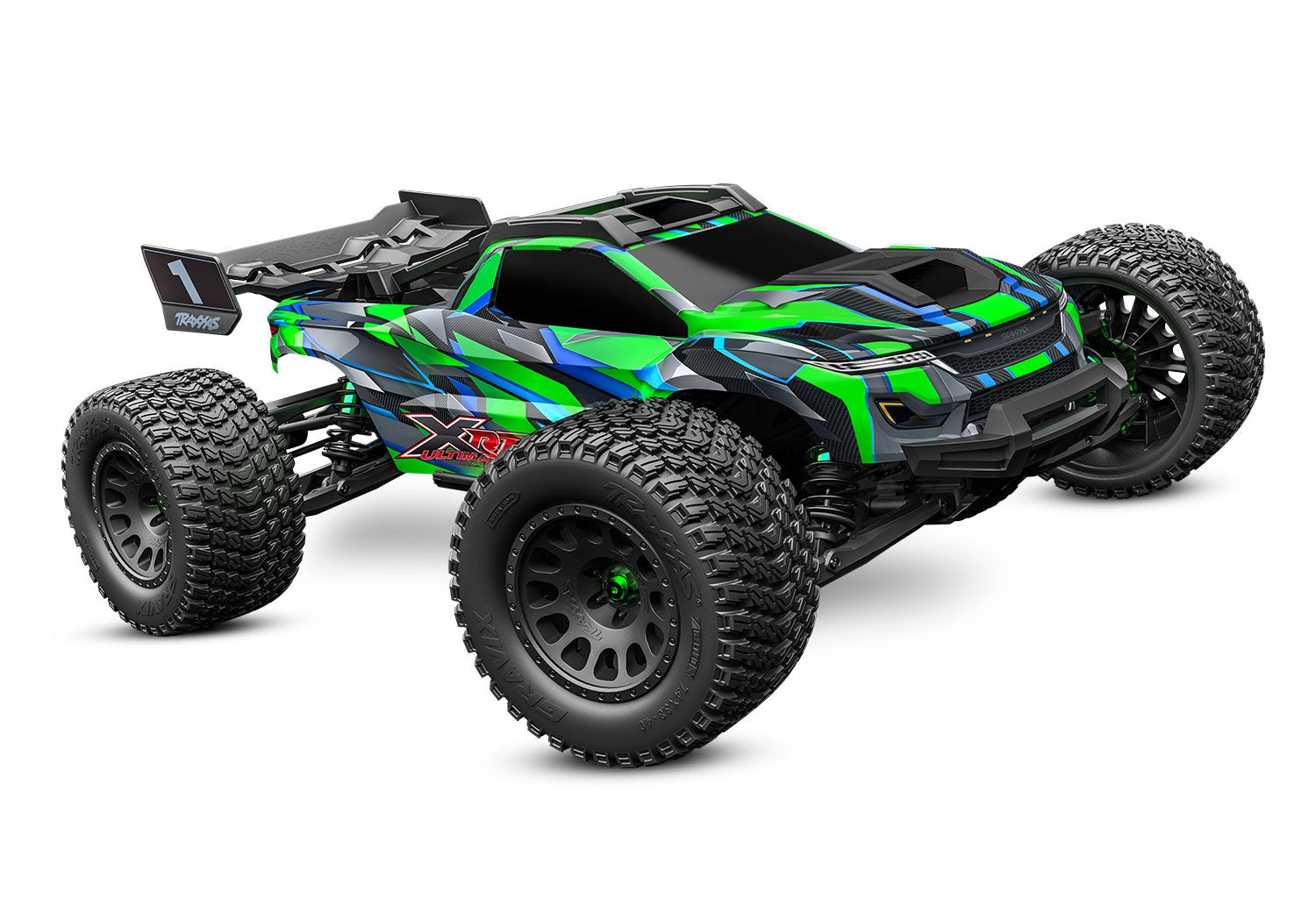

XRT 8S Ultimate Ready to Run (GreenX) (TRA78097-4-GRNX)

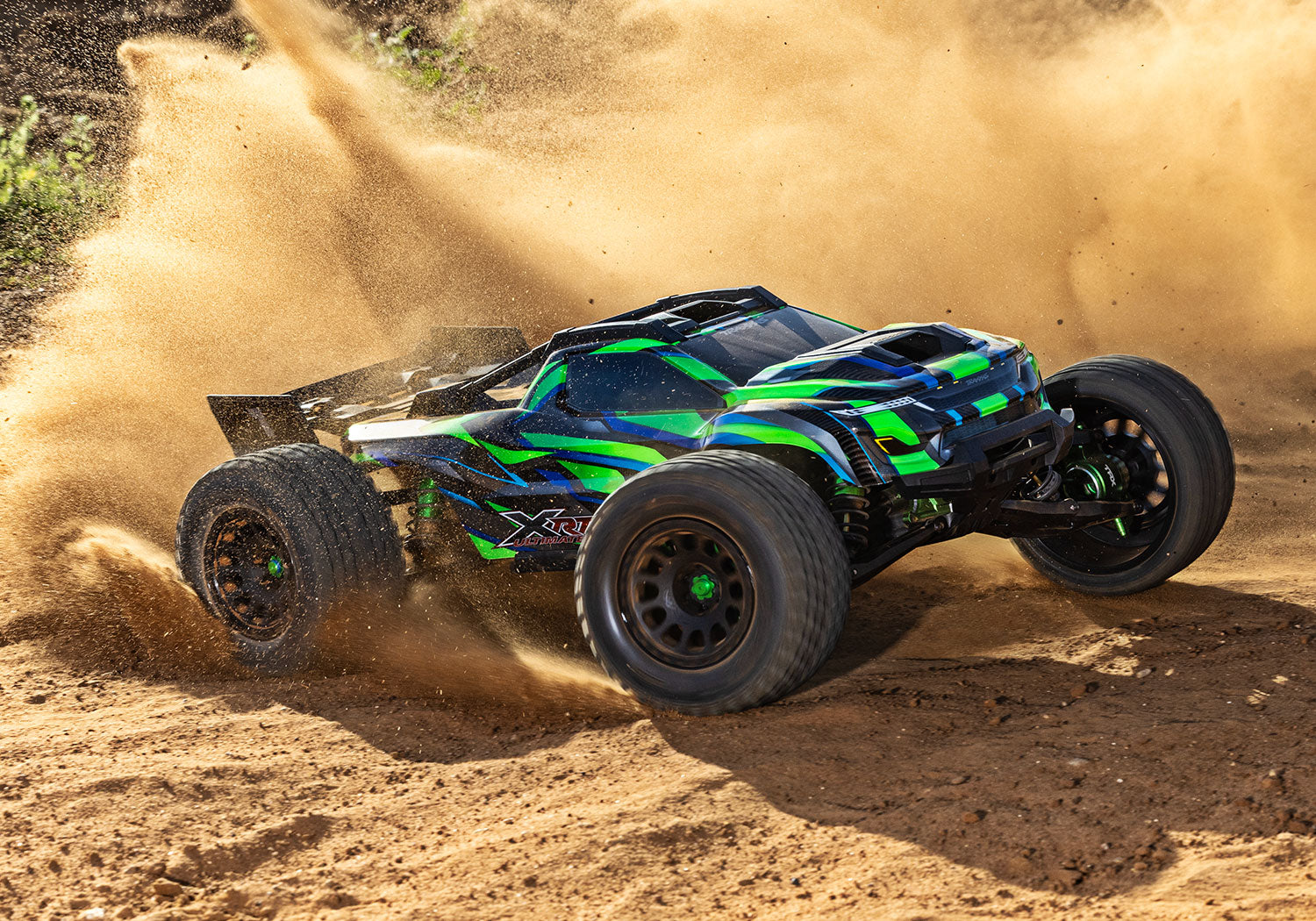

The Traxxas XRT Ultimate redefines large-scale performance by blending the raw power and durability of the X-Maxx platform with precise race-truck handling. Loaded with over $1,000 worth of premium upgrades, the 2025 edition takes it even further with enhanced graphics, stronger axles, and the most powerful steering servo ever offered in an XRT model. From the track to the trail, this is the ultimate expression of X-Truck engineering.

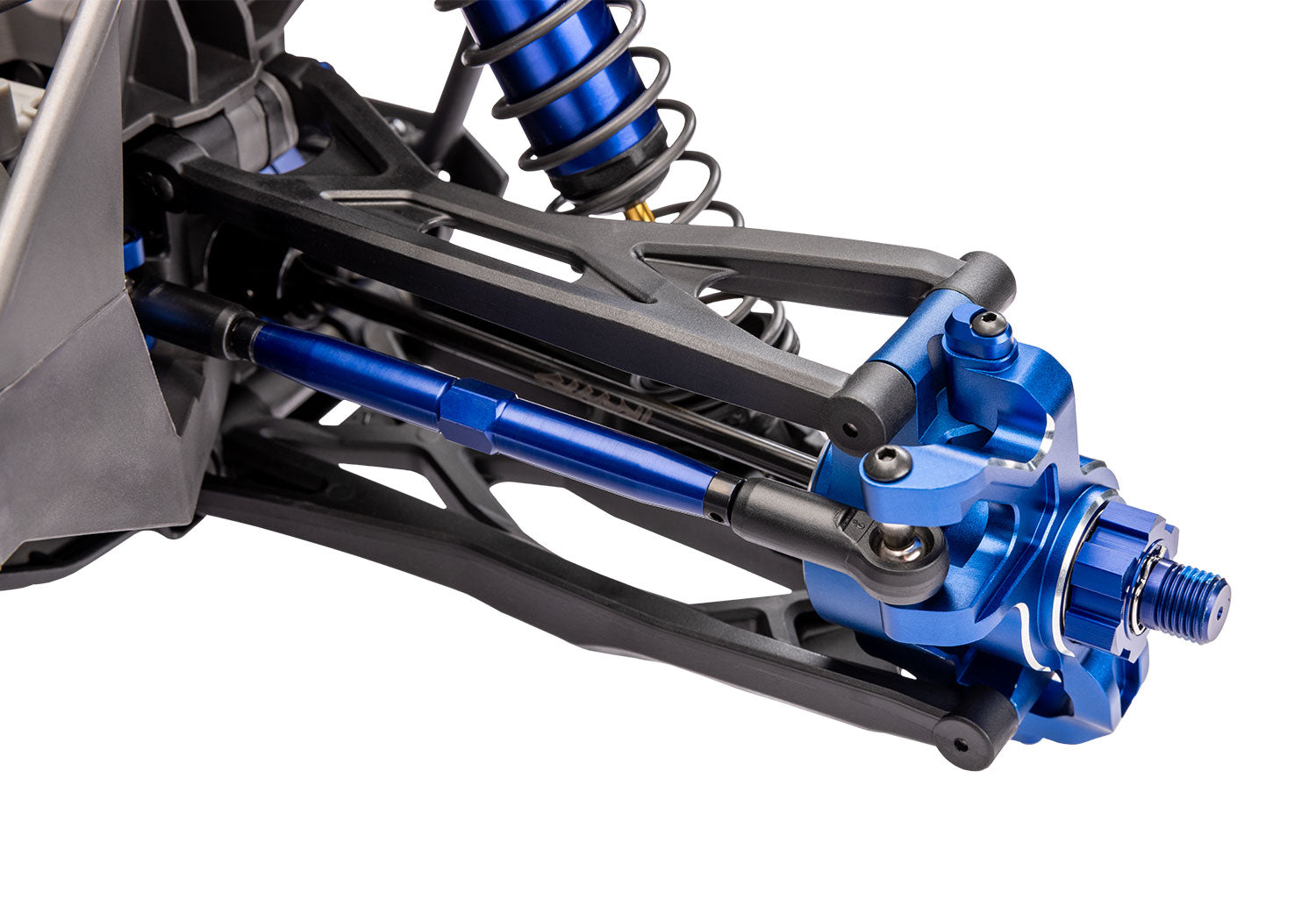

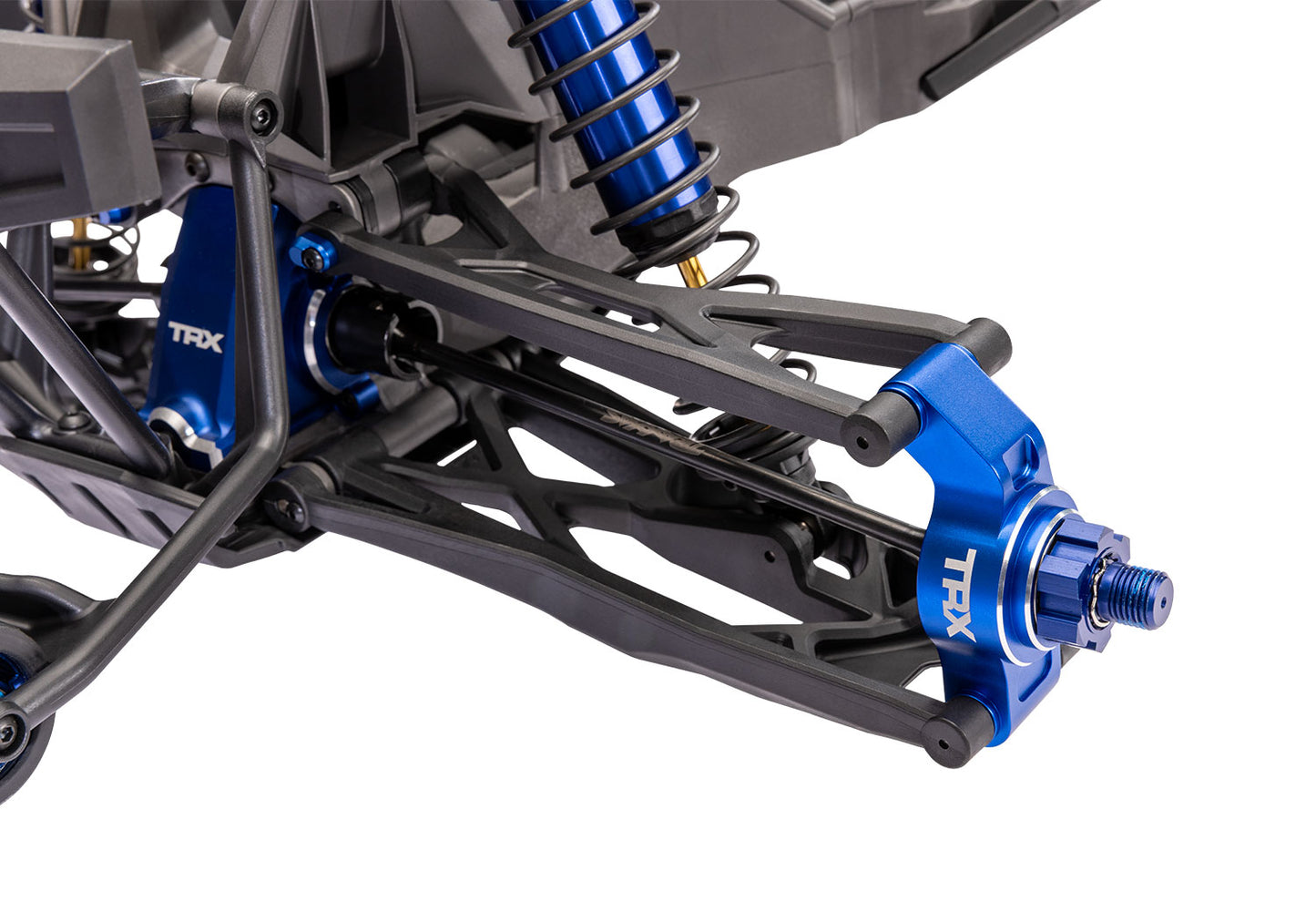

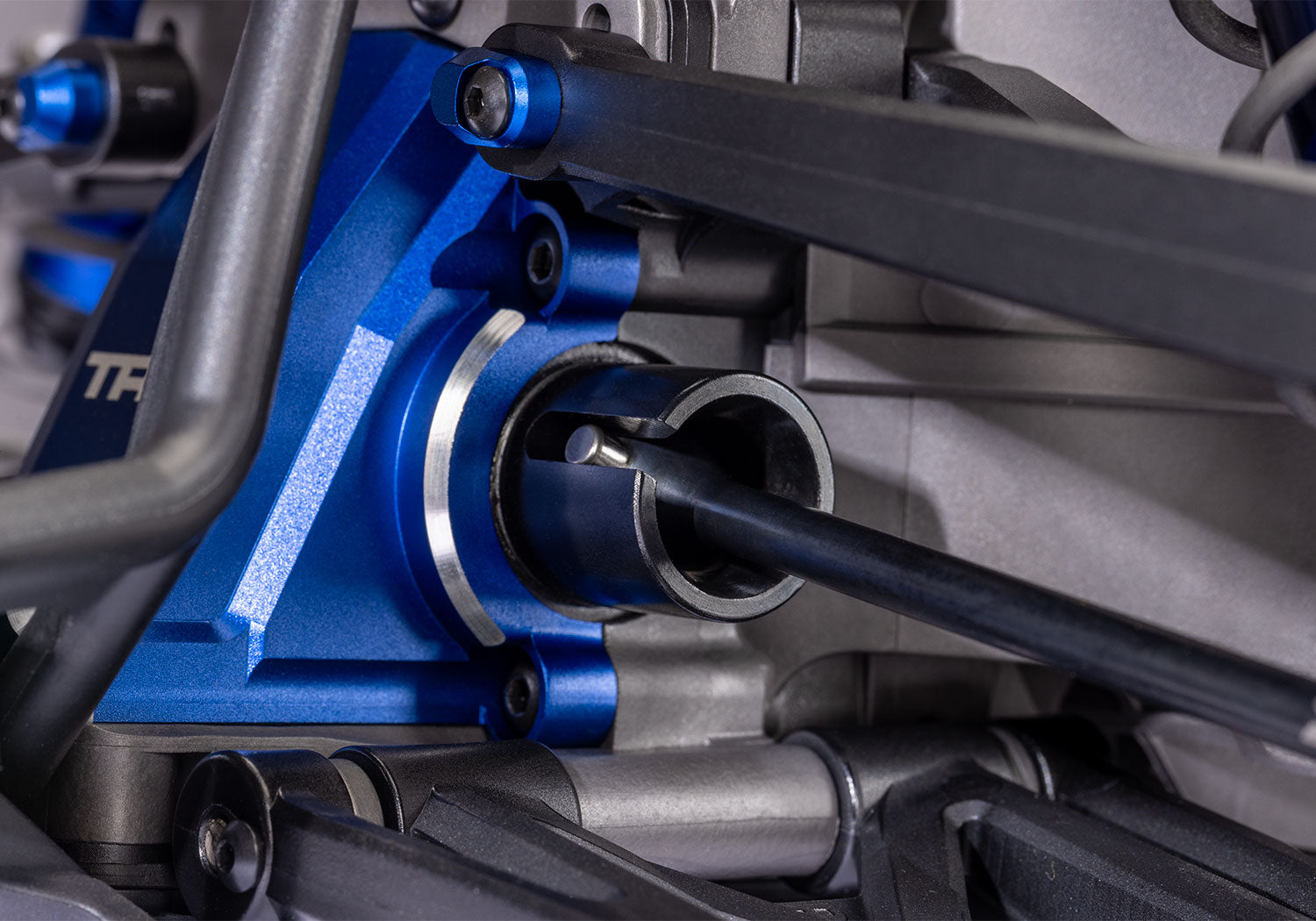

Built for uncompromising durability, the XRT Ultimate is outfitted with high-strength aluminum components across the suspension, chassis, drivetrain, and steering. These upgrades not only deliver superior toughness but also improve stability and precision at high speeds. Machined aluminum differential housings, steering blocks, motor mounts, and hub carriers ensure that every component is battle-ready for extreme performance.

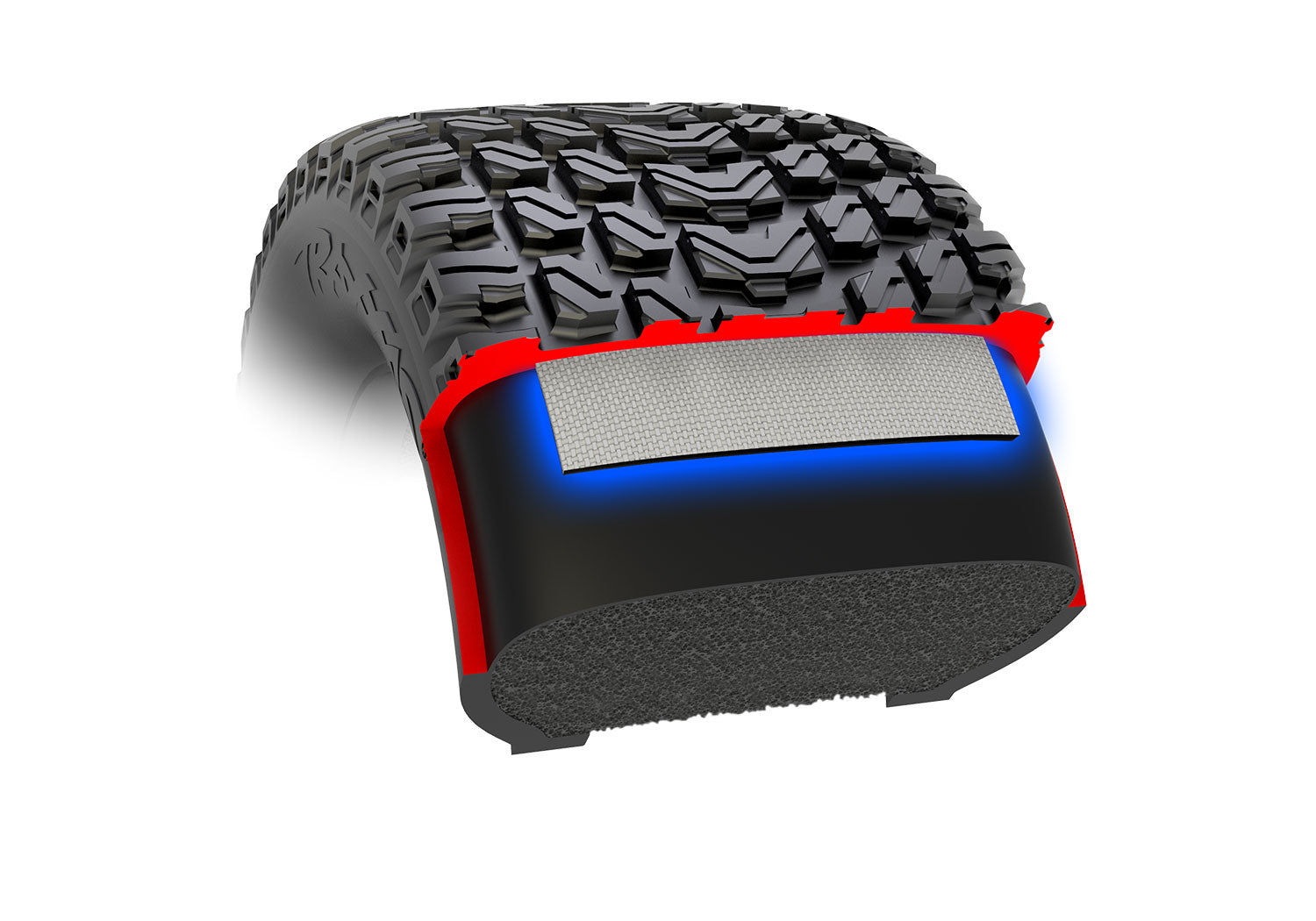

Handling is elevated by belted Gravix tires featuring a directional tread and lightweight internal belting for exceptional grip, reduced road noise, and consistent shape under load. Combined with adjustable TUBES toe links and precision-machined bellcrank steering, the XRT Ultimate delivers confident control on any surface.

At the heart of its commanding steering is the High Torque Maxx Servo, delivering an incredible 650 oz-in of torque through steel gears and an aluminum center case. This high-output servo ensures authoritative steering response even under the demands of high-speed, off-road driving.

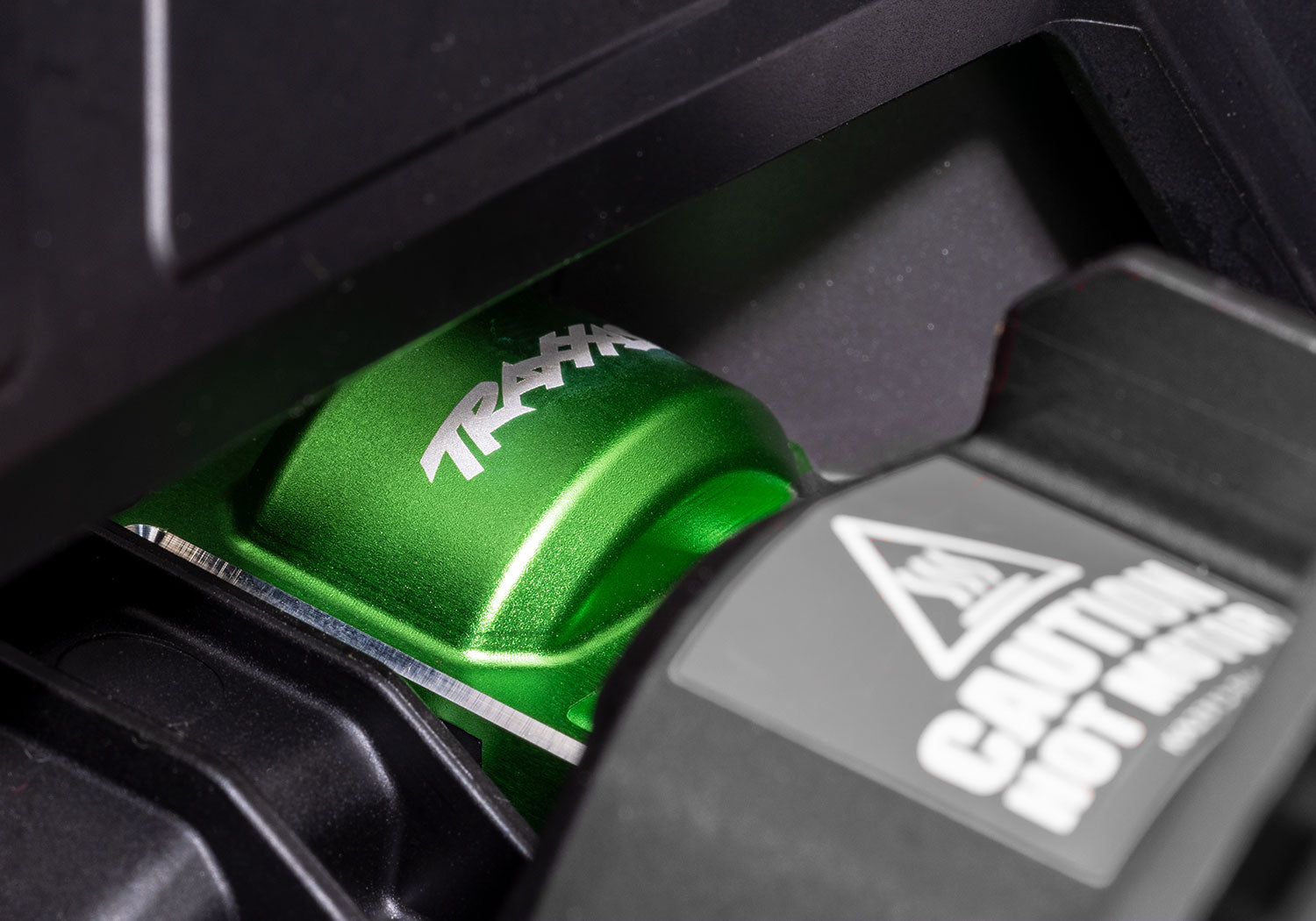

Performance is driven by the VXL-8s brushless power system, capable of propelling the truck past 60 mph with 8s LiPo power. Hardened steel pinion and spur gears, heavy-duty driveshafts, and an aluminum transmission cover keep everything in perfect alignment under extreme conditions. The aluminum GTX shocks with TiN-coated shafts and oversized oil volume handle the roughest terrain with ease and stability.

With the included TQi 2.4 GHz radio system and factory-installed Traxxas Link Wireless Module, drivers can access a wide range of tuning options and real-time telemetry through the free Traxxas Link app. View live data such as speed, RPM, temperature, and battery voltage from a customizable dashboard right on a mobile device.

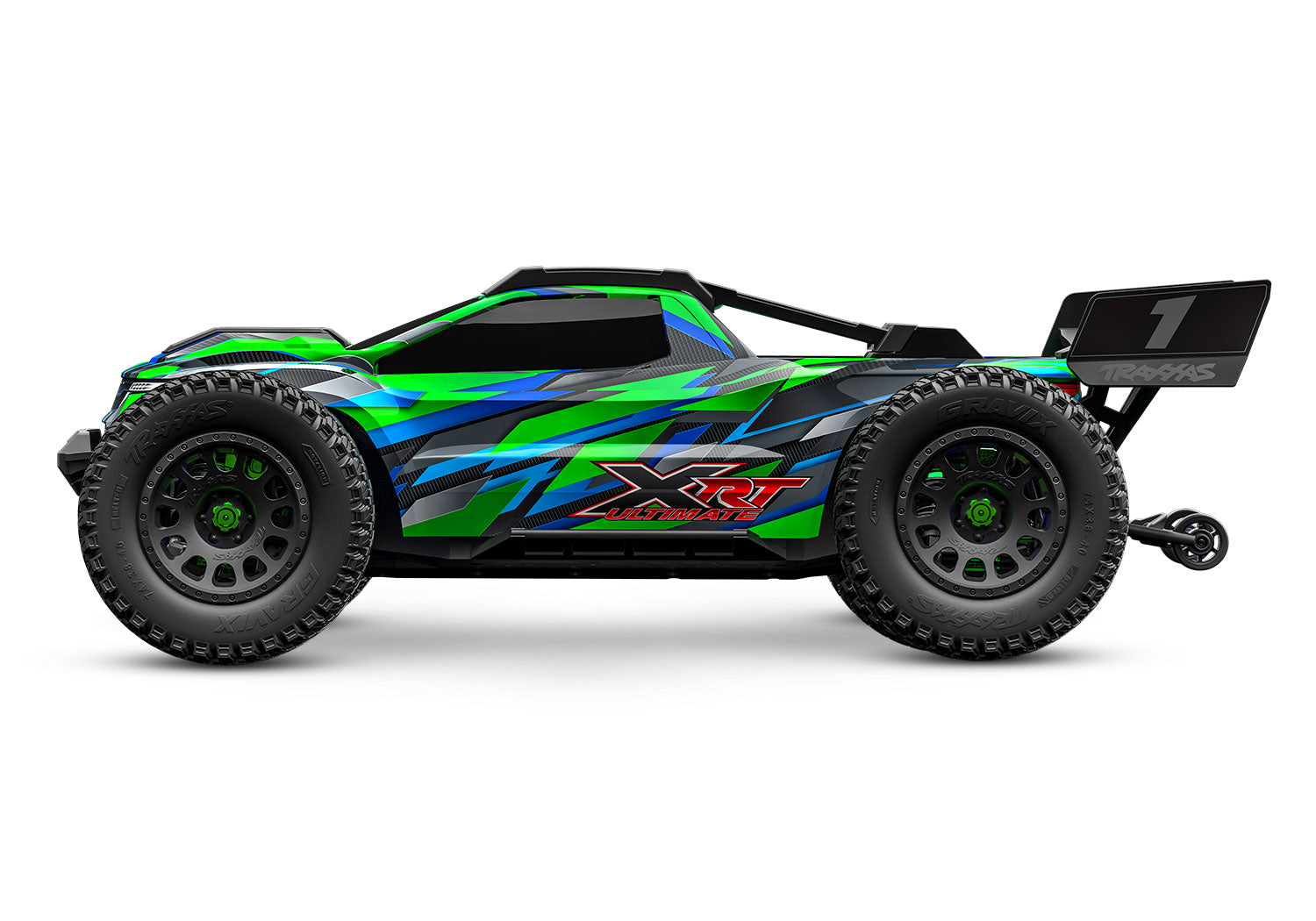

The XRT Ultimate stands out visually as well, thanks to its exclusive ProGraphix body with reinforced structure and rigid internal frame for added protection. Anodized aluminum accents on parts like the wheelie bar wheels and transmission cover provide a high-performance aesthetic that matches the truck’s bold capabilities.

Factory-assembled and Ready-To-Race, the Traxxas XRT Ultimate includes the TQi radio system, VXL-8s electronic speed control, and high-quality maintenance tools. To complete the setup, users will need two 4-cell 6700 mAh LiPo batteries, a 4s LiPo charger, and four AA batteries for the transmitter.

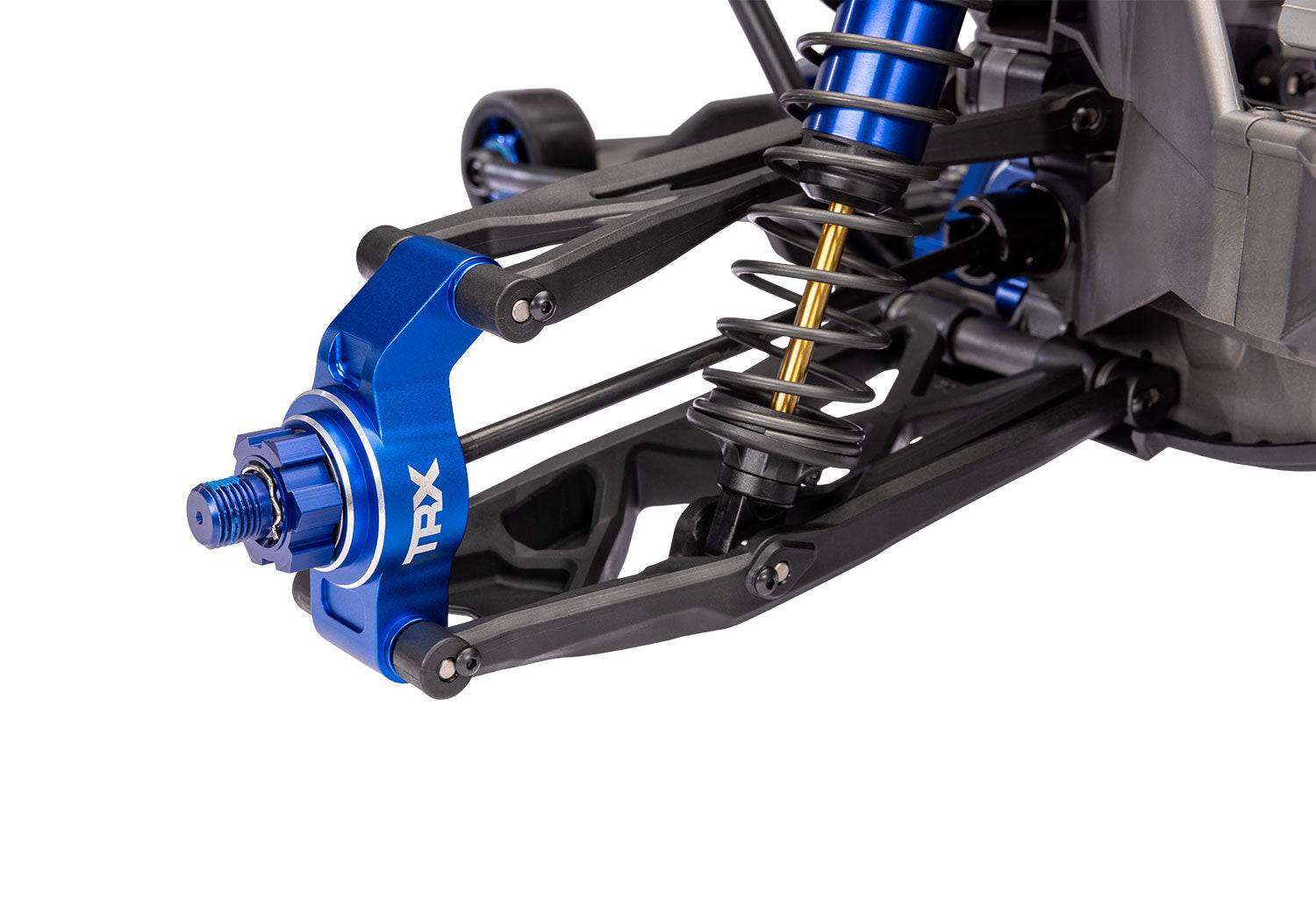

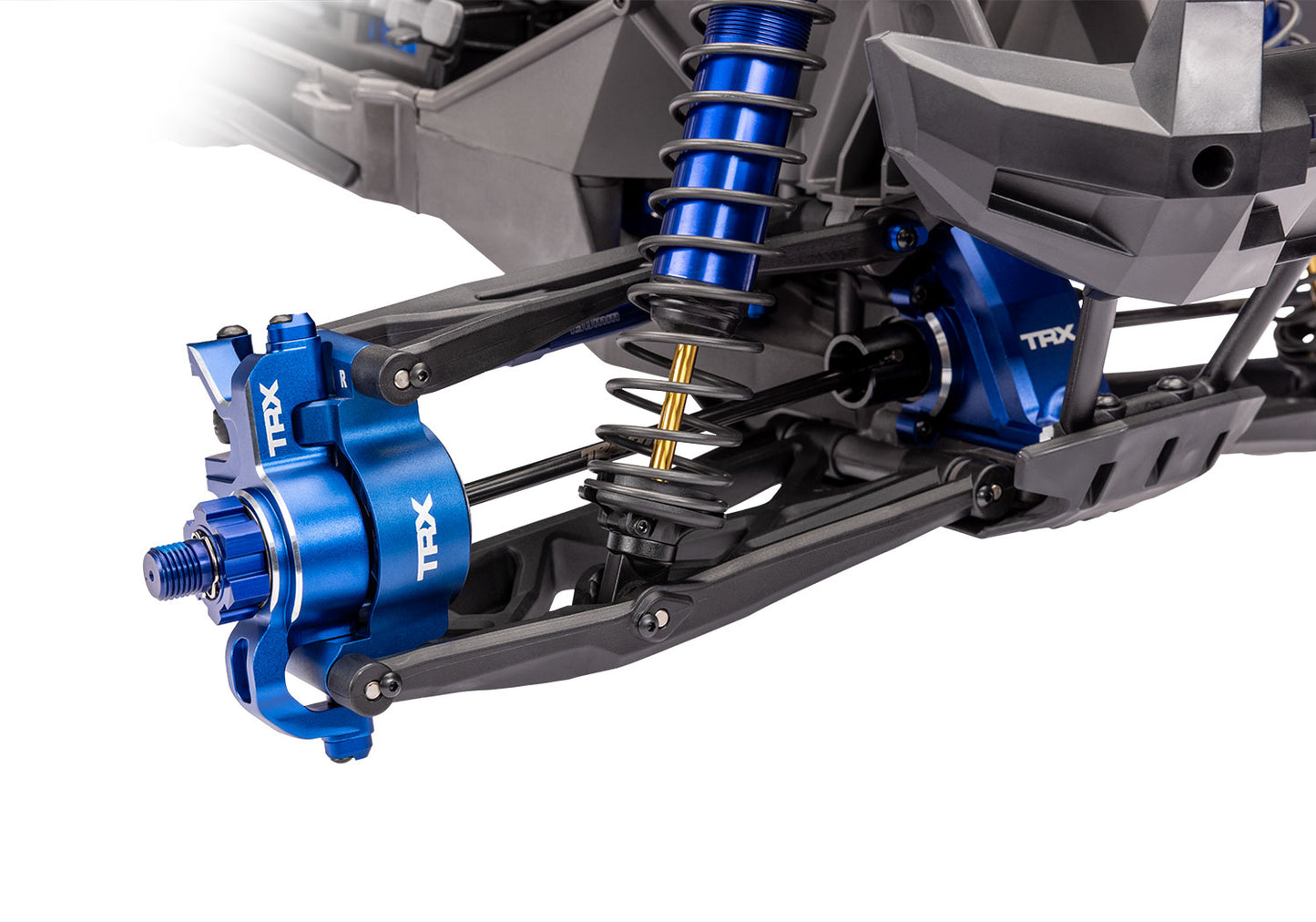

• High-performance 6061-T6 aluminum upgrades including C-hubs, steering blocks, rear hub carriers, differential housings, and motor mounts
• VXL-8s waterproof electronic speed control with aggressive tuning for increased power across RPMs
• Integrated cooling fan, machined heat sink, 3-LED status indicators, powered accessory ports, and 10-gauge silicone wiring
• Integrated protection circuits for enhanced ESC durability

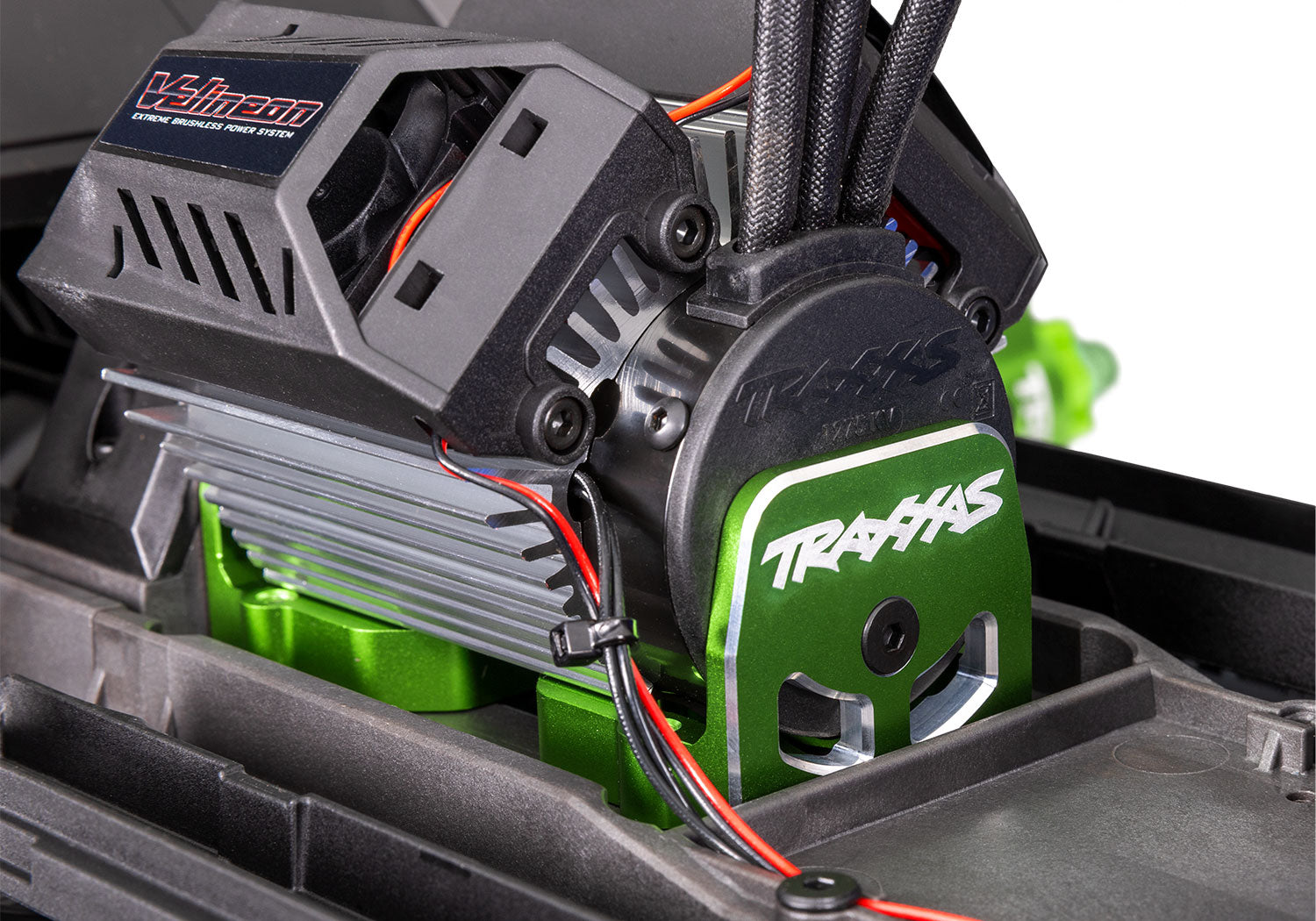

• Velineon 1200XL brushless motor with 4-pole 1275 Kv and 5 mm output shaft
• Oversize aluminum heatsink and dual cooling fans for improved motor cooling
• Capable of reaching speeds over 60 mph with two 4s LiPo batteries (sold separately)
• Traxxas Stability Management system for improved acceleration and braking on low-traction surfaces
• Throttle remains responsive and fully adjustable from off to 100% assistance via the transmitter
• TQi 2.4 GHz 2-channel radio system with factory-installed wireless module
• Telemetry sensors and 5-channel micro receiver with fail-safe security and integrated telemetry ports
• Patented waterproof receiver box with easy-access plug
• X-Maxx Spec 8s drivetrain with machined, hardened steel pinion and spur gear

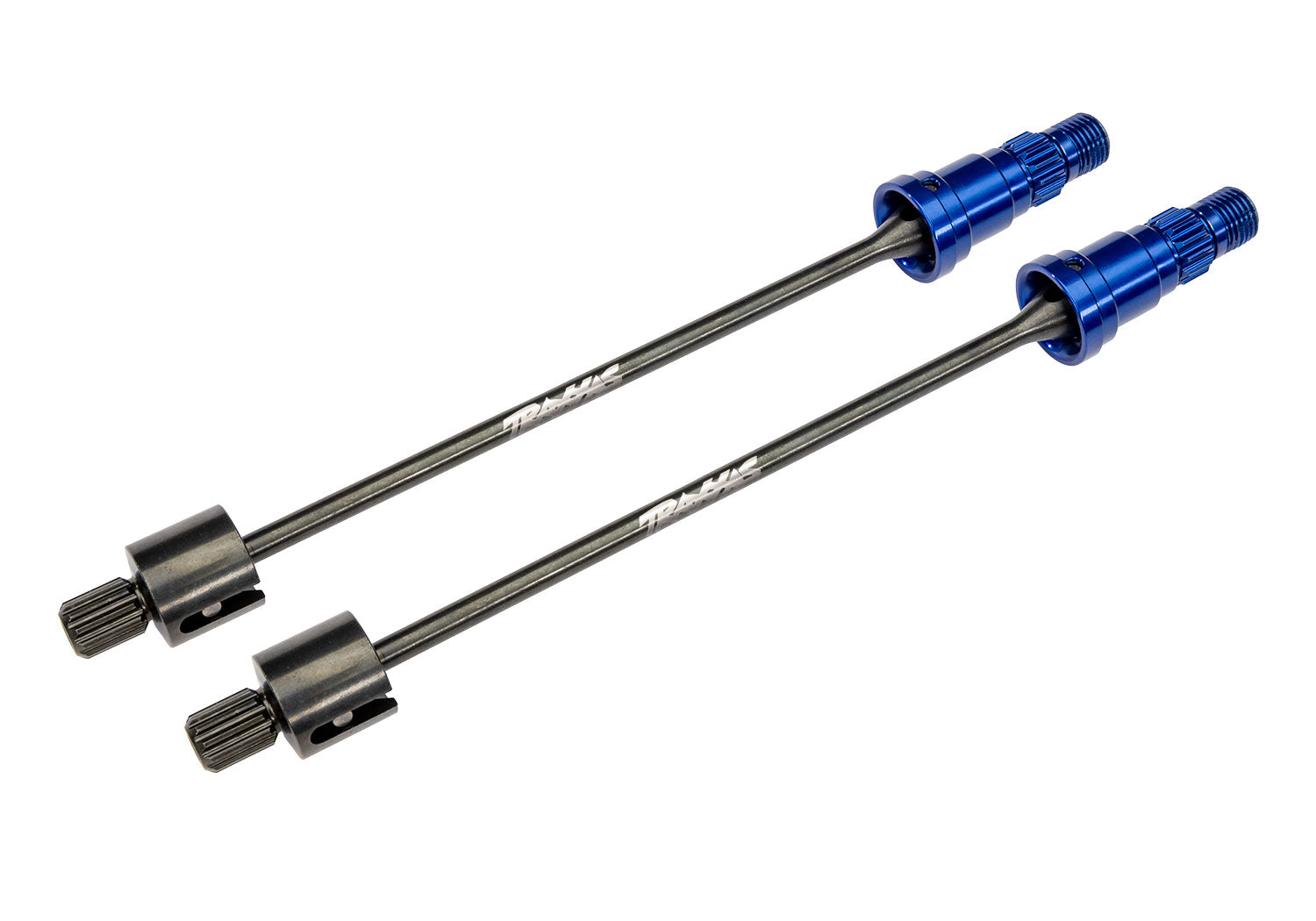

• Full-time shaft-driven 4WD with heavy-duty steel CV driveshafts and splined aluminum center driveshaft
• Machined aluminum stub axles and beefed-up steel differential output cups
• Mod-1 pinion and spur gears in the transmission with torque-biasing center drive
• Maxx Spec differentials with sealed 4-gear design and large steel ring and pinion gears
• Splined outdrives secured with external thru-bolt method
• Rock-solid motor mounting system with rigid aluminum mounts and precise gear mesh adjustments
• Motor locked with four keyed pins and separate retention system

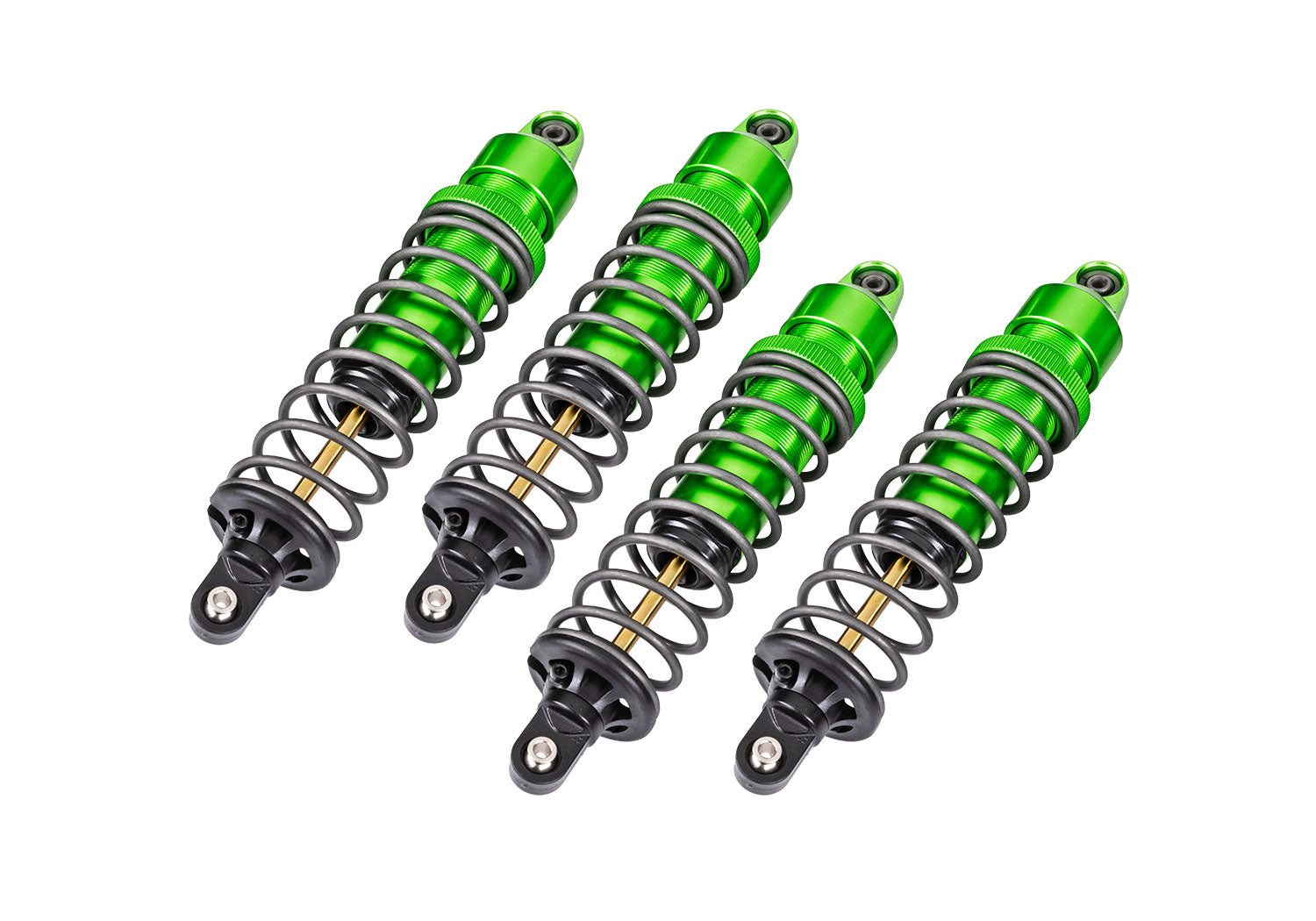

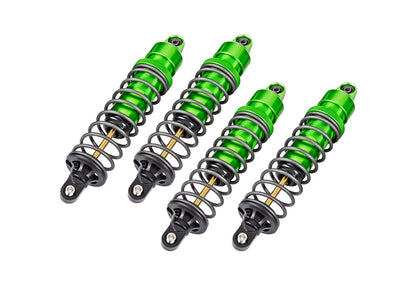

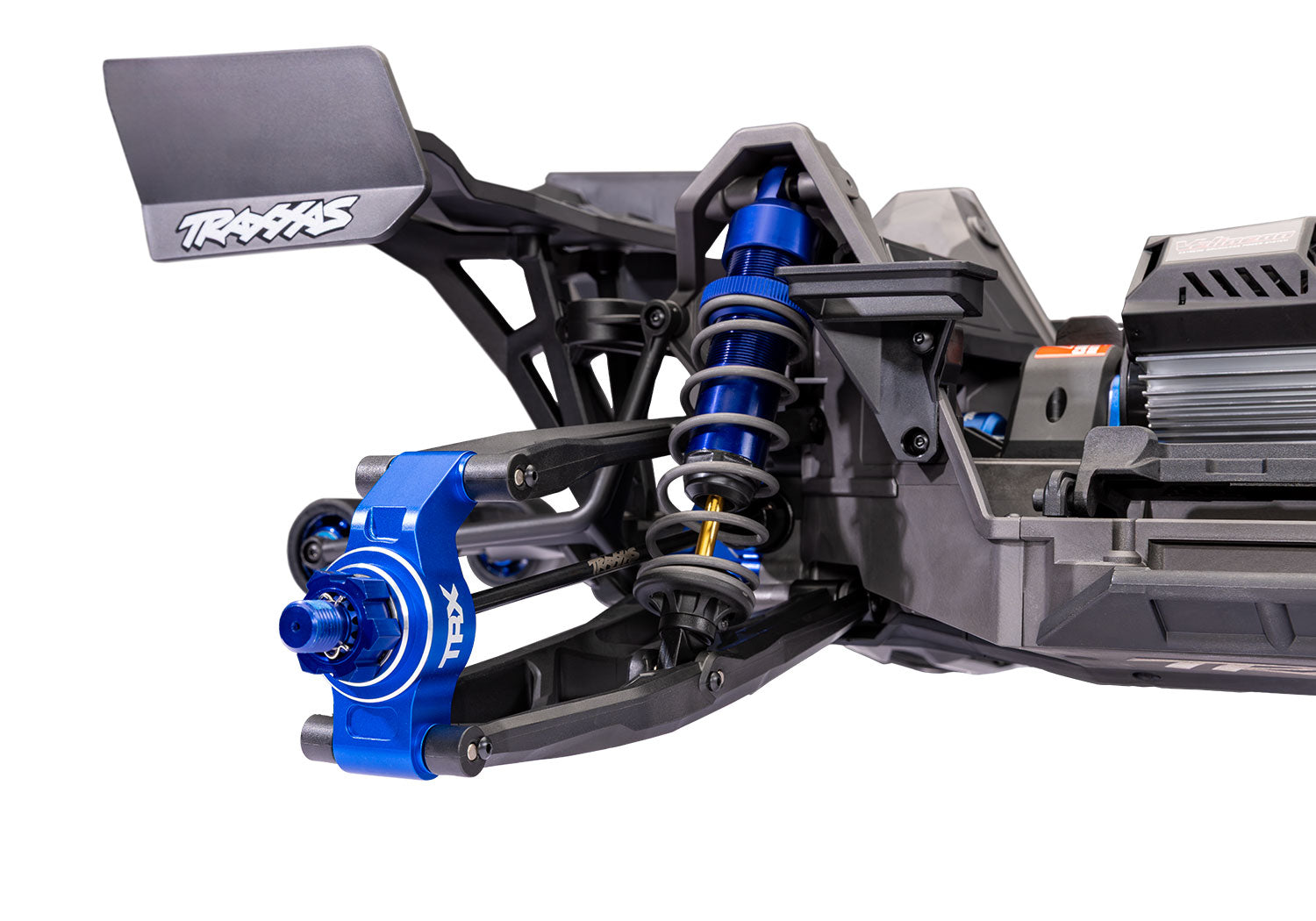

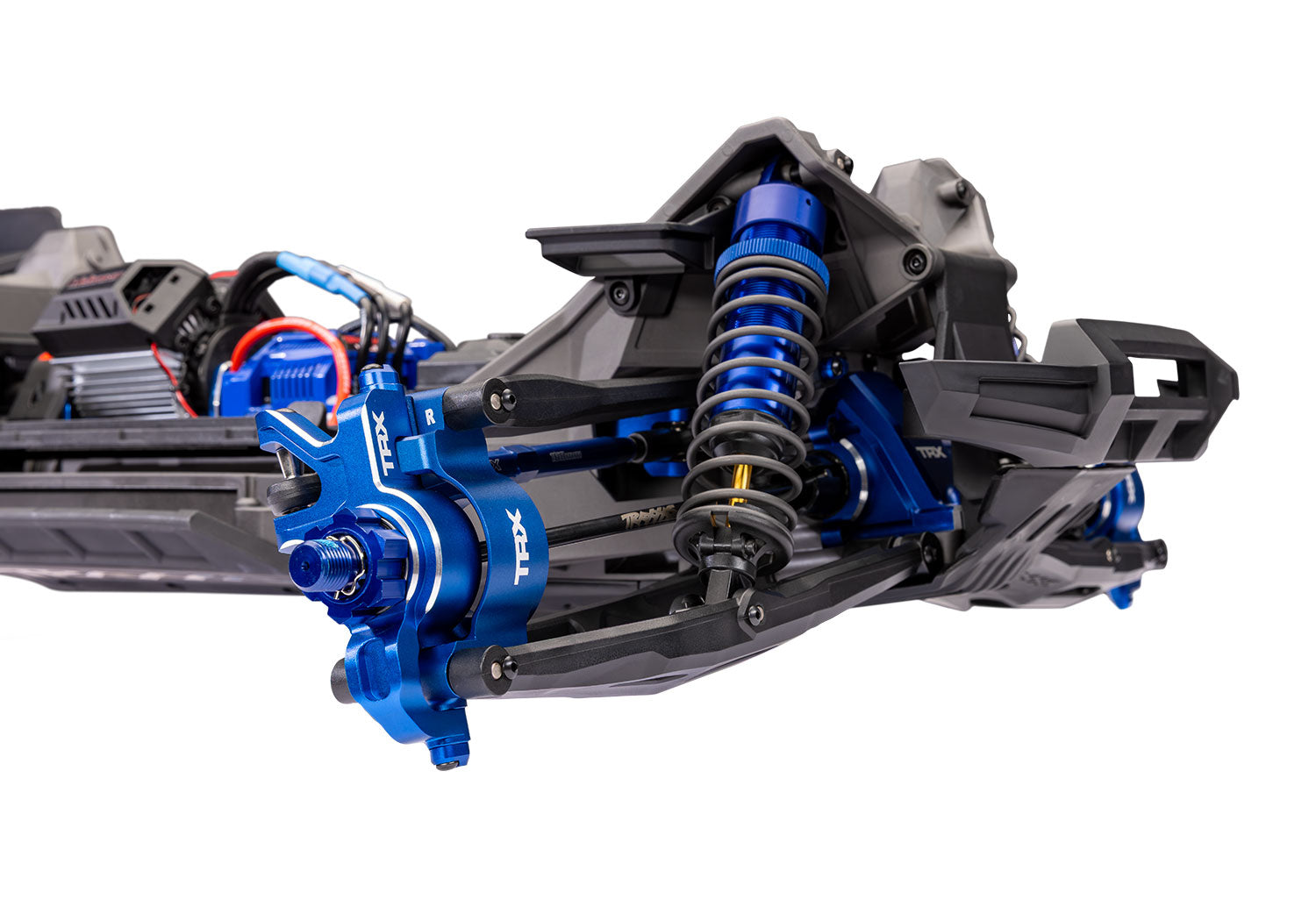

• GTX aluminum race shocks with extra-large bore, TiN-coated 5.2 mm damper shafts, and bolted-on lower spring perches
• Machined aluminum threaded bodies, upper spring retainers, and shock caps with pivot balls
• WideMaxx suspension with extra-wide arms made from high-strength cold-weather material
• Double-shear connections and high-strength steel suspension pins with retainers

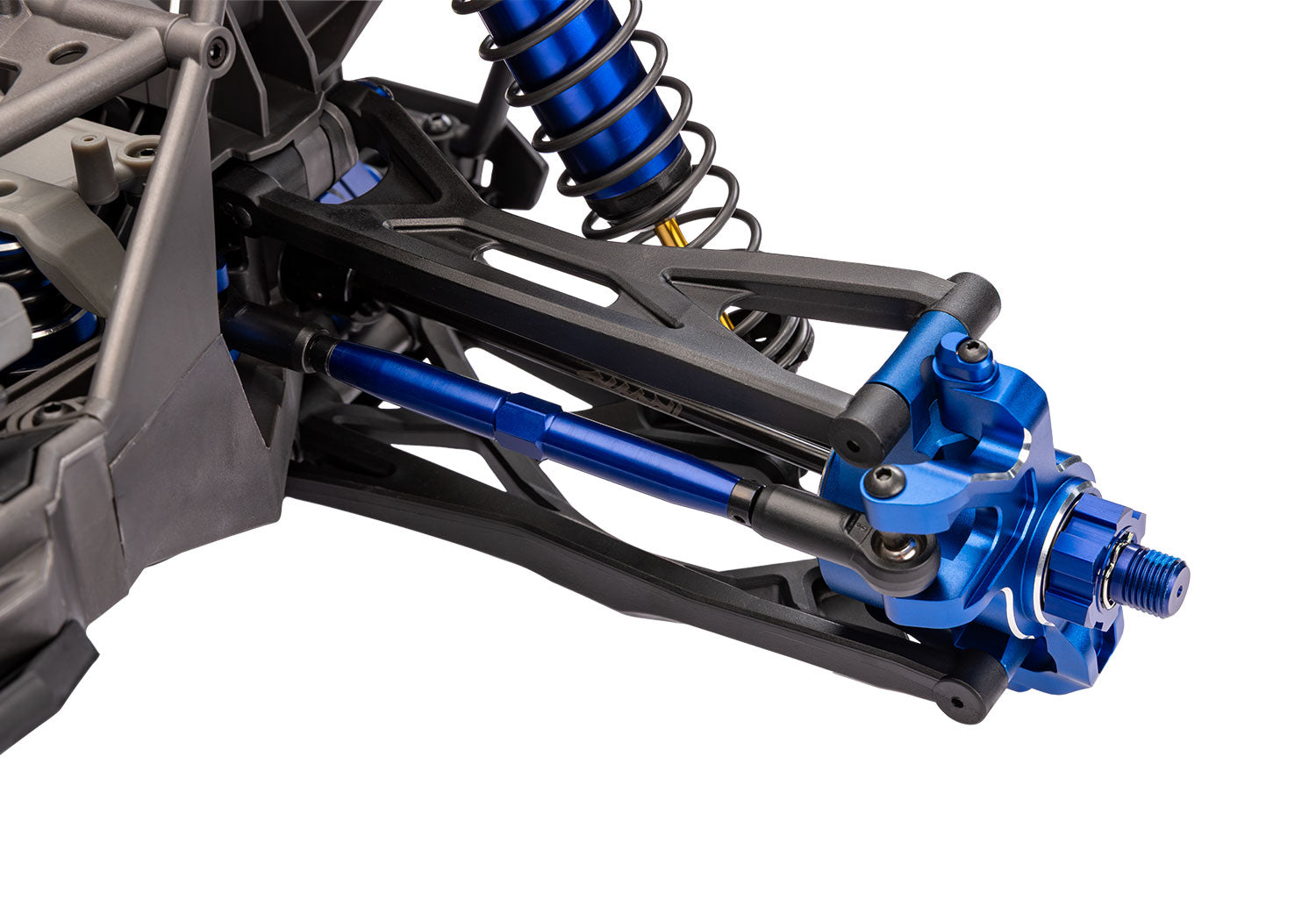

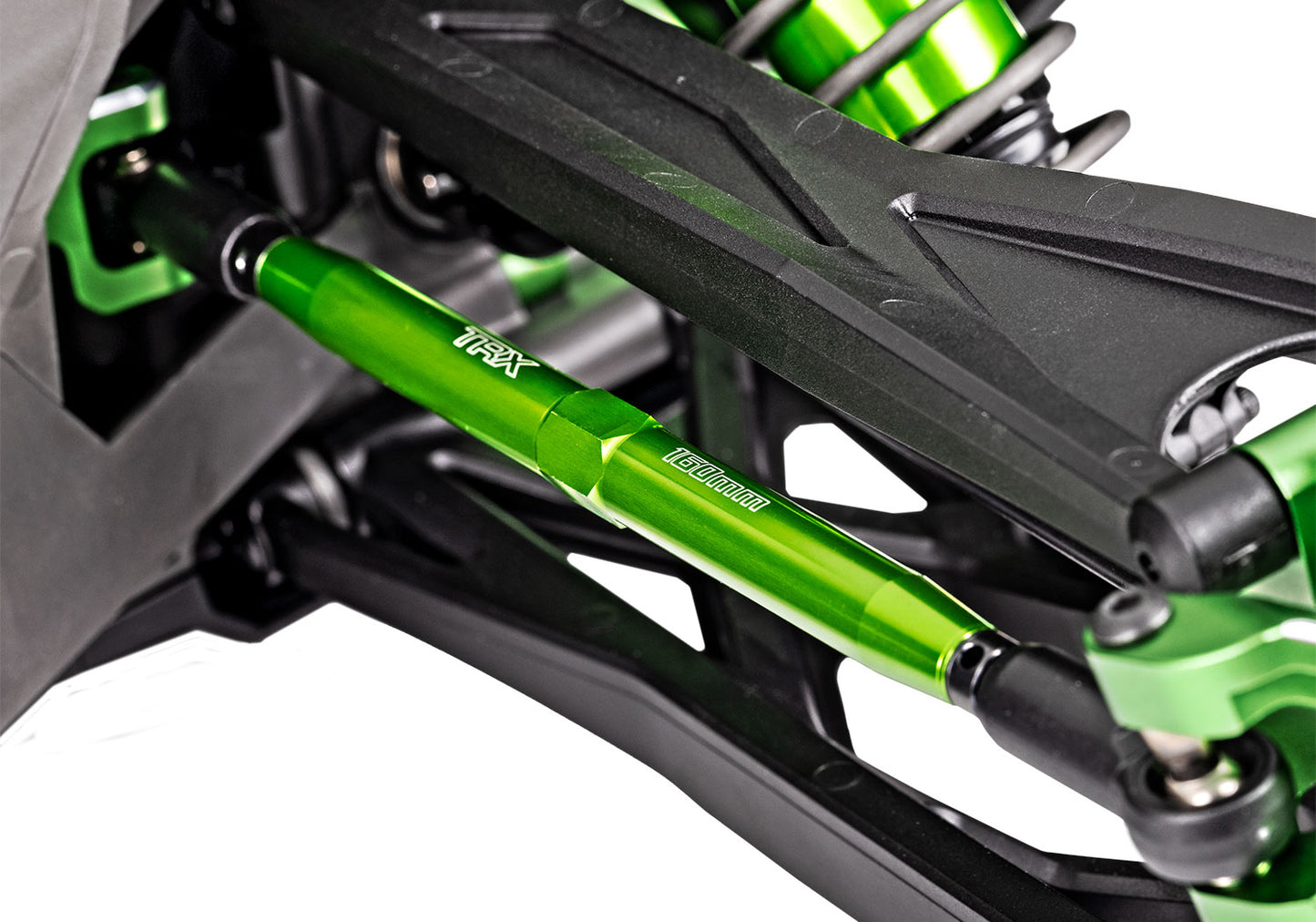

• 4 mm machined pivot balls and TUBES 7075-T6 aluminum front toe links
• Oversized wheel bearings for durability

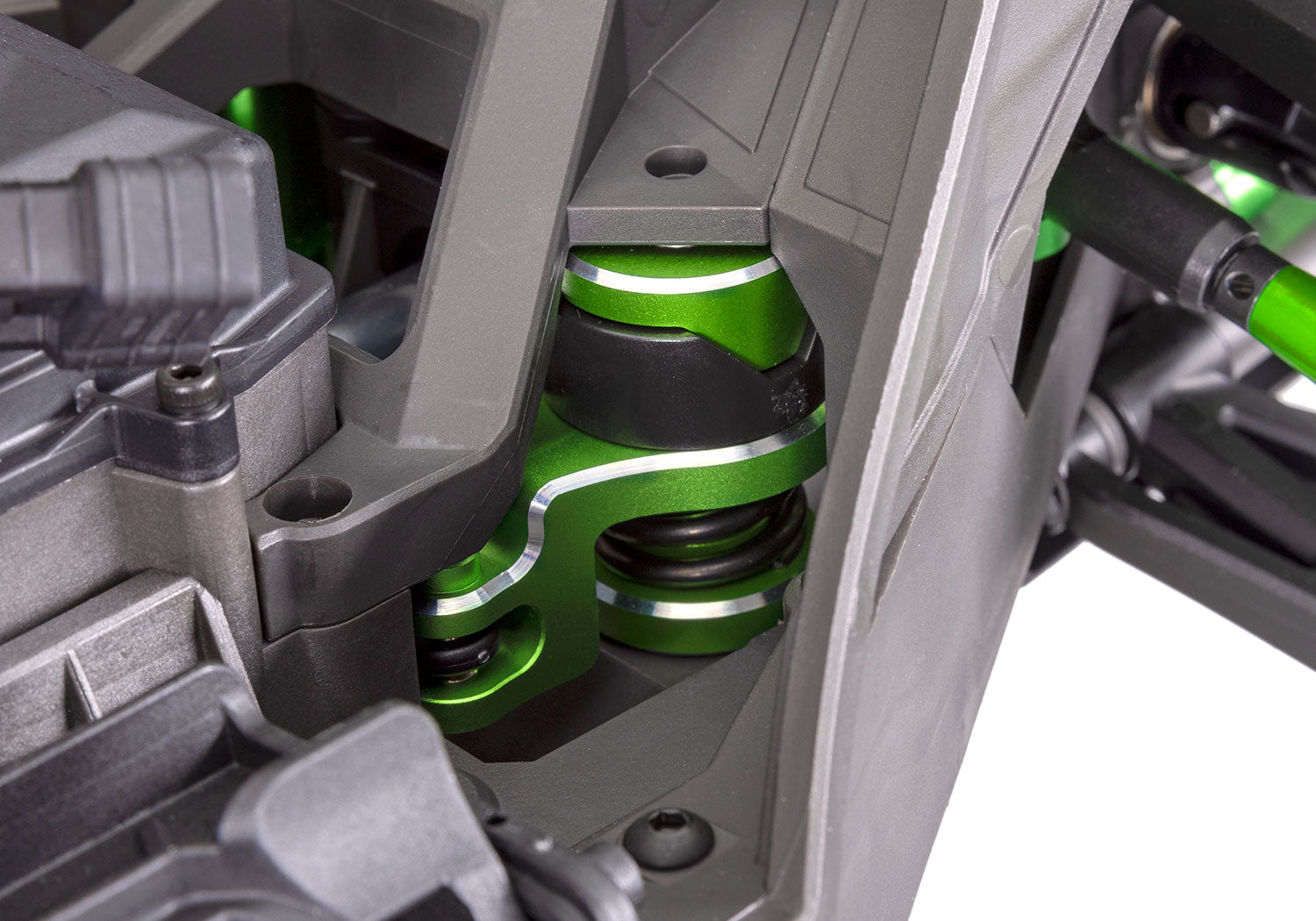

• 6061-T6 aluminum steering bellcranks and 2085RL high-output metal-gear steering servo
• 650 oz-in torque and 0.13 sec/60° at 6.0 volts
• Double-shear aluminum servo horn and heavy-duty servo saver spring with dirt evacuation channels

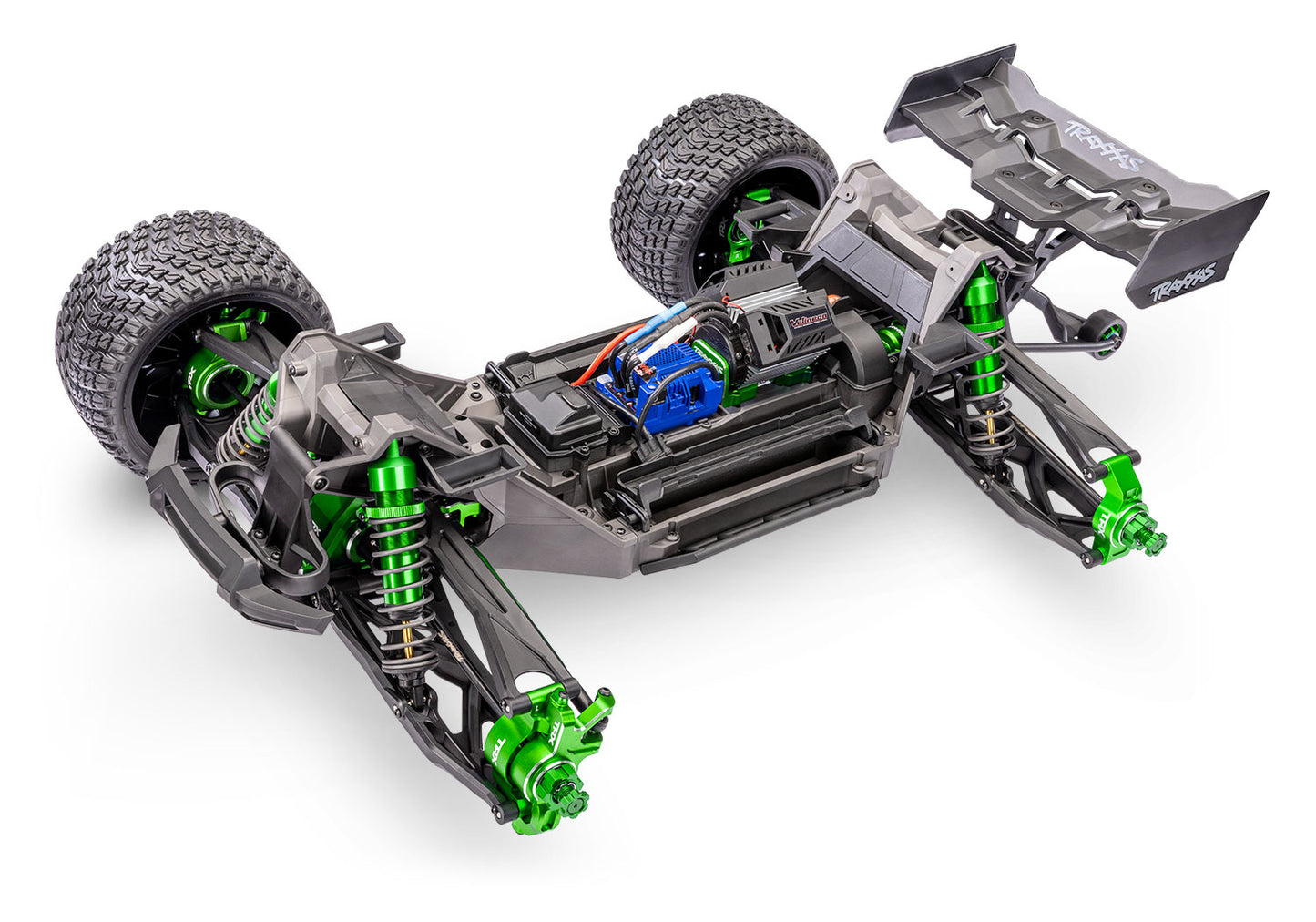

• Ultra-low-CG chassis with modular interlocking bulkheads and flat bottom design
• Heavy-duty interlocking skid plates and high-strength buttressing on shock towers
• Dual snap-lock battery compartments for impact protection and secure battery mounting

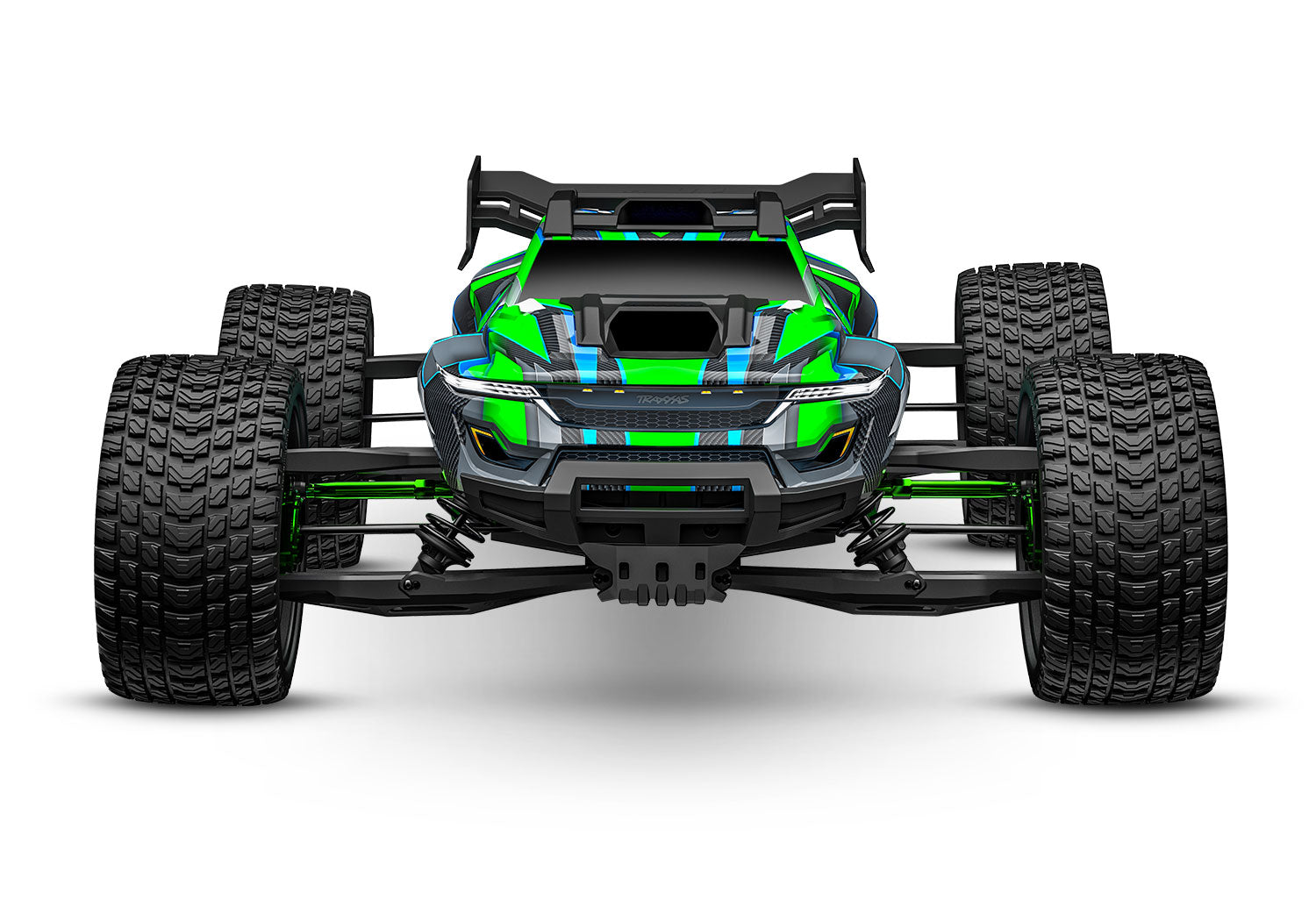

• Clipless ProGraphix body with rigid internal frame and molded reinforcements
• Dual high-capacity cooling ducts and protective top skids
• Heavy-duty bumpers and reinforced rear wing support for impact absorption

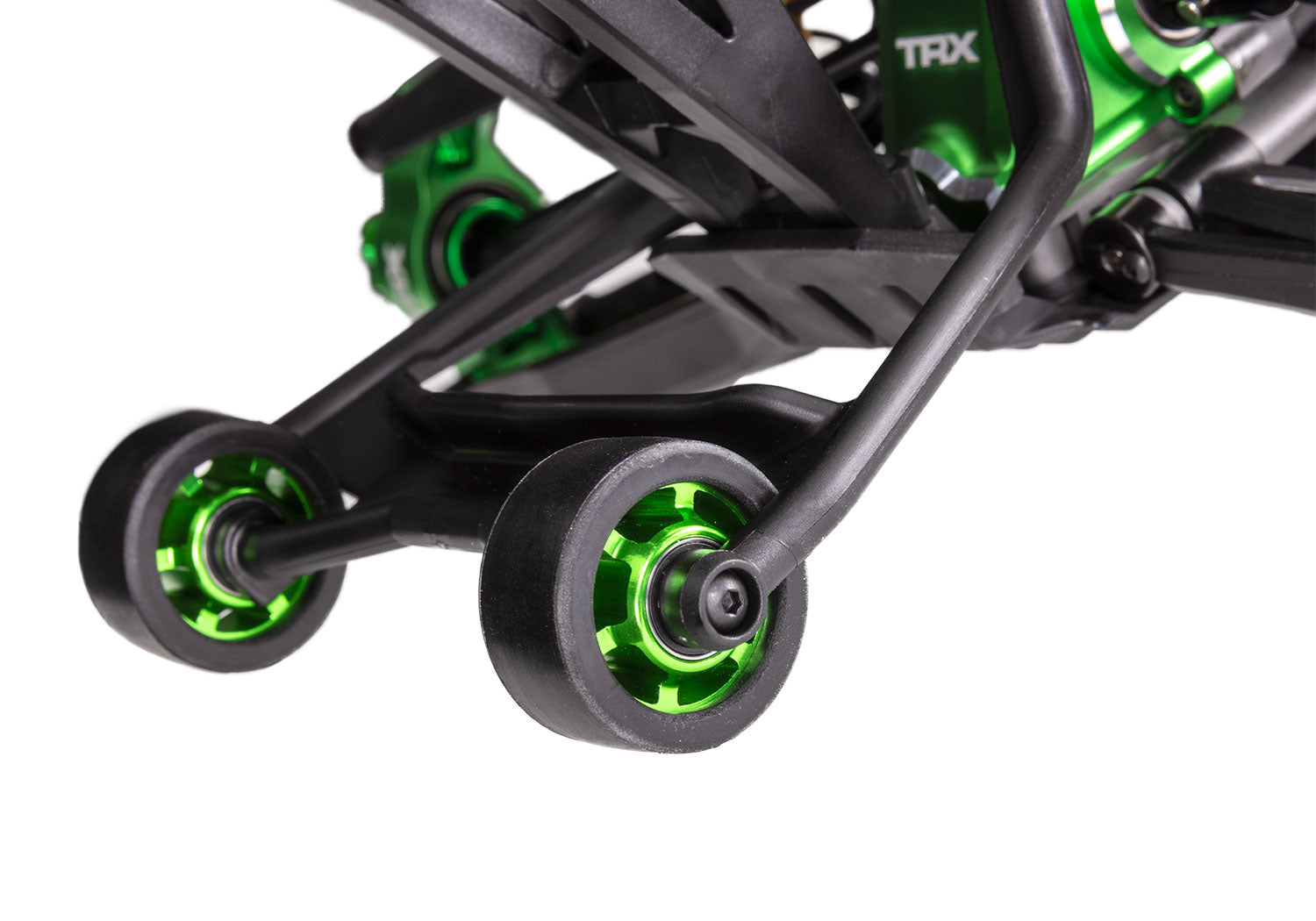

• Integrated nerf bars and wheelie bar with carry handle
• 7.4″ Gravix belted race tires with low sidewall for improved handling and reduced ballooning
• 3.8″ matte black XRT race wheels with high-strength glue and bead design
• Huge 24 mm splined wheel hubs for secure wheel mounting
• Sealed ball bearings and rust-resistant black oxide-coated hex hardware

• Model Name: XRT Ultimate
• Model Type: Monster Truck
• Top Speed: 60+ mph with dual 4s LiPo batteries and optional gearing (sold separately)
• Skill Level: 5
• Scale: X-Truck
• Weight: 21.55 pounds (9.79 kg)
• Length: 31.41 inches (798 mm)
• Width: 23.43 inches (595 mm)
• Front Track: 23.43 inches (595 mm)
• Track: 23.43 inches (595 mm)
• Height: 10.15 inches (258 mm)
• Wheelbase: 18.9 inches (480 mm)
• Center Ground Clearance: 1.93 inches (49 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 metric pitch
• Servo: 2085RL metal gear ultra-high-torque waterproof
• Radio System: TQi 2.4 GHz 2-channel transmitter with wireless module
• Battery Compartment Specs: 185 mm x 51 mm x 44 mm
• Motor Name: Velineon 1200XL
• Motor Type: 1275 Kv sensorless brushless
• Motor Weight: 23.44 ounces (665 g)
• Motor Length: 4.32 inches (110 mm)
• Motor Diameter: 1.88 inches (48 mm)
• Motor Shaft Size: 5 mm
• Motor Connector Type: 6.5 mm bullet connectors
• ESC Name: Velineon VXL-8s
• ESC Type: Brushless
• ESC Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
• ESC Weight: 7.60 ounces (215.5 g)
• ESC Motor Connectors: 6.5 mm bullet connectors
• ESC Battery Connectors: Traxxas High-Current Connectors
• ESC Power Wire: 10 gauge Maxx Cable
